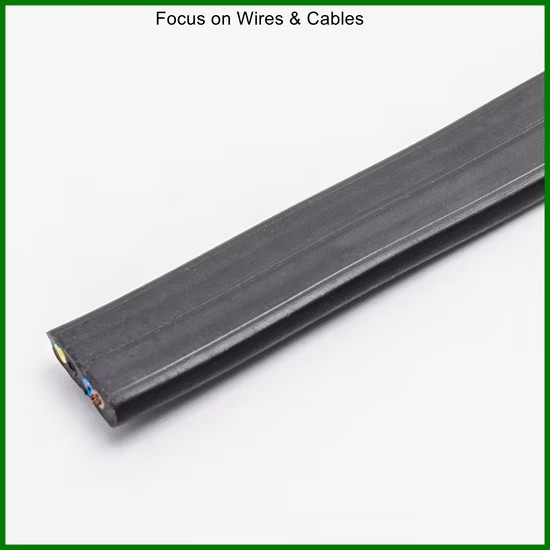

Oil Cold Flame Resistant PVC Flexible Flat Cable

Basic Info.

Model NO.	flat cable
Application	Overhead, Heating, Construction,Crane,Conveyors, Industrial
Conductor Material	Copper
Sheath Material	Special PVC
Insulation Material	Speical PVC for Crane Lift Cable
Material Shape	Round Wire
Range of Application	Flame Retardant
Certification	ISO9001, CCC, RoHS
Produceing Experience	15 Years
Size(mm2)	0.75~25
More Size	Customized According to Your Request
OEM	Yes
Export Experience	Southeast Asia,South America,Russia
Transport Package	Coil, Drum or as Per The Customer′s Request
Specification	SGS
Origin	Henan
HS Code	8544492100
Production Capacity	500km Per Month

Product Description

Oil Resistant Flexible Flat Cable for Crane Lifter and Conveyors

1.15years producing experience
2. OEM is available.
3. Speical types and sepcifications can be Customized.

4.Description of cable:

Conductor : Superfine Stranded Copper wires,
Class5 Acc. to VDE0295

Insulation: Speical Compounded PVC
Oil resistant, Flame Resistant, self-extinguishing

Sheathing: Speical Compounded PVC or Acrylonitrile Butadiene Polyvinyl Chloride Rubber
Fine Oil-resistance , Cold resisance, flame resistance

Color of sheathing: grey , black

Specification:
Core Nos.: 2core, 3core, 4core,.........16C,17C,.....20C.21C.22C...66Core
Nominal Section Area:0.75mm2,0.82,1.0,1.25,1.5,2.5.....~ 95mm2
More size and specification can be customized

Technical Data:
Rated voltage: 300/500V
Test voltage: 2500V
Minimum bending radius: 0.3m<L<0.3m
Used under normal conditions,the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C

Packing:
1.100meter per roll
2. at least 500meter per drum

Our Workshop for View
