Basic Info.

Model NO.	GYXTW (D173/D174)
Connection Structure	GYXTW
Material Shape	Round Wire
Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	>10000N
Core	Multicore
Certification	RoHS, CE, ISO9001
Brand	Fulsan
Sheath Material	PE
Transport Package	Wood Pallet, Plywood or Custimized.
Specification	CE, UL, ROHS
Trademark	FULSAN
Origin	CHINA
HS Code	85444211
Production Capacity	10, 000, 000m per month

Packaging & Delivery

Package Size100.00cm * 100.00cm * 80.00cm Package Gross Weight50.000kg

Product Description

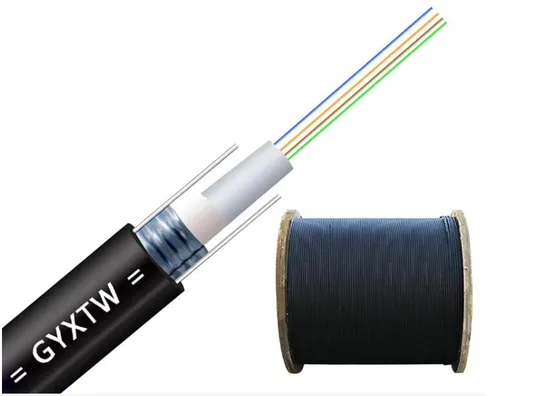

High quality outdoor Fiber Optical cable 2 4 6 8 12core G652D GYXTW Cable

Description of Product:
In the structure of Model GYXTW optical cable,the single mode or multimode optical fibers are jacketed by loose tube and the tube is made of high modulus polyester.Inside the tube,it is full of waterproof filling compound,in which no elemental hydrogen could be detected. Outside the loose tube,it is wrapped longitudinally by a layer of both sides plastic coated ripple steeltape and the waterproof material between th steel tape and loose tube is used to ensure compact optical cable structure and longitudinal waterproof.There are two parallel steel wires on the two sides of the loose tube and they are sheathed by PE to form an optical cable.

Features of product:
The loose tube material itself has perfect hydrolysis resistance and high strength.
Two parallel steel wires ensure high tensile strength of optical cable.
The medium density PE sheath features perfect mechanical tensile strength, weatherproof,abrasive resistance and good environmental stress cracking performance.
It is convenient in construction as its small diameter,light weight and perfect performance-price ratio.

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

The tube is wrapped with a layer of corrugated steel tape longitudinally between the corrugated steel tape and the loose tube

Water-blocking material is applied to keep the cable compact and watertight.

Two parallel steel wires are placed at the to sides of the steel tape. The cable is completed with PE sheath.

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation

Standards:

GYXTW cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C

Technical Parameters

Other Model:

Model Number	GYXTW
Type	Coaxial
Number of Conductors	2
Certification	UL ,ROHS,SGS
Fiber	SM/MM/OM3/OM4
Fiber Core	2-24 core
Jacket Material	PE /LSZH/PU
Laying method	Pipeline/Overhead/Direct bury/Duct
keywords	outdoor fiber optic cable
Color	Black or customized
Fiber brand	Corning, LS, etc
Fire Resistant	Yes
Armored or not	Corrugated steel tape armored

Cable Type	Fiber Count	Cable Diameter(mm)	Cable Weight kg/km	Tensile Strength Long /Short Term N	Crush Resistance Long/Short Term N /100mm	Bending Radius Static /Dynamic mm
GYXTW-2~24	2~24	8.8	90	600/1500	300/1000	15D/30D
